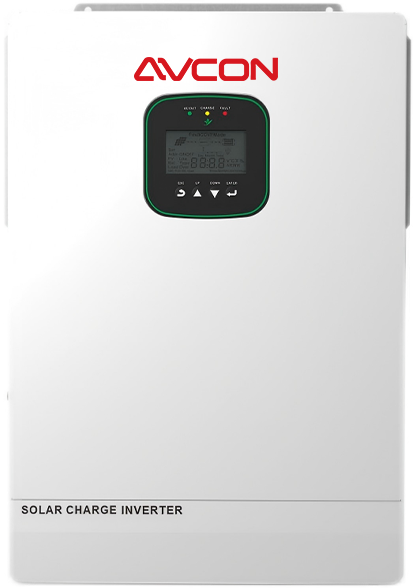

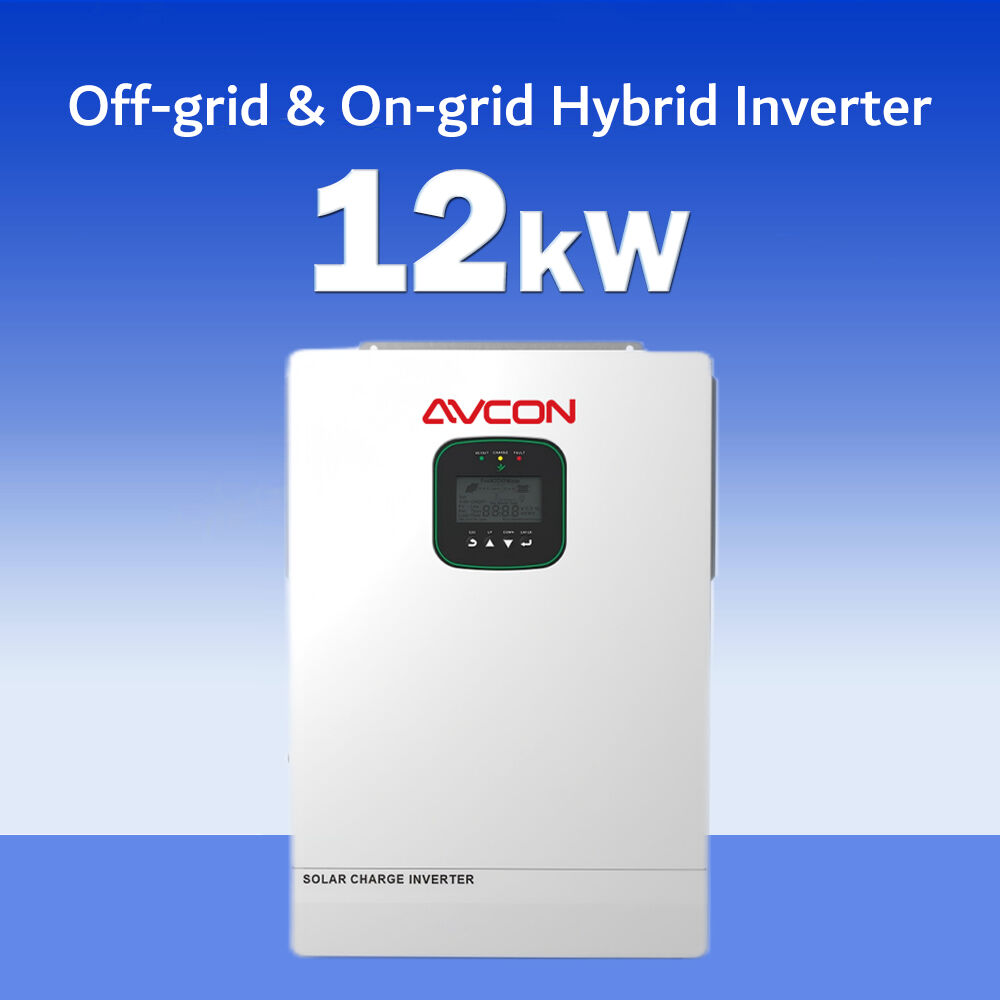

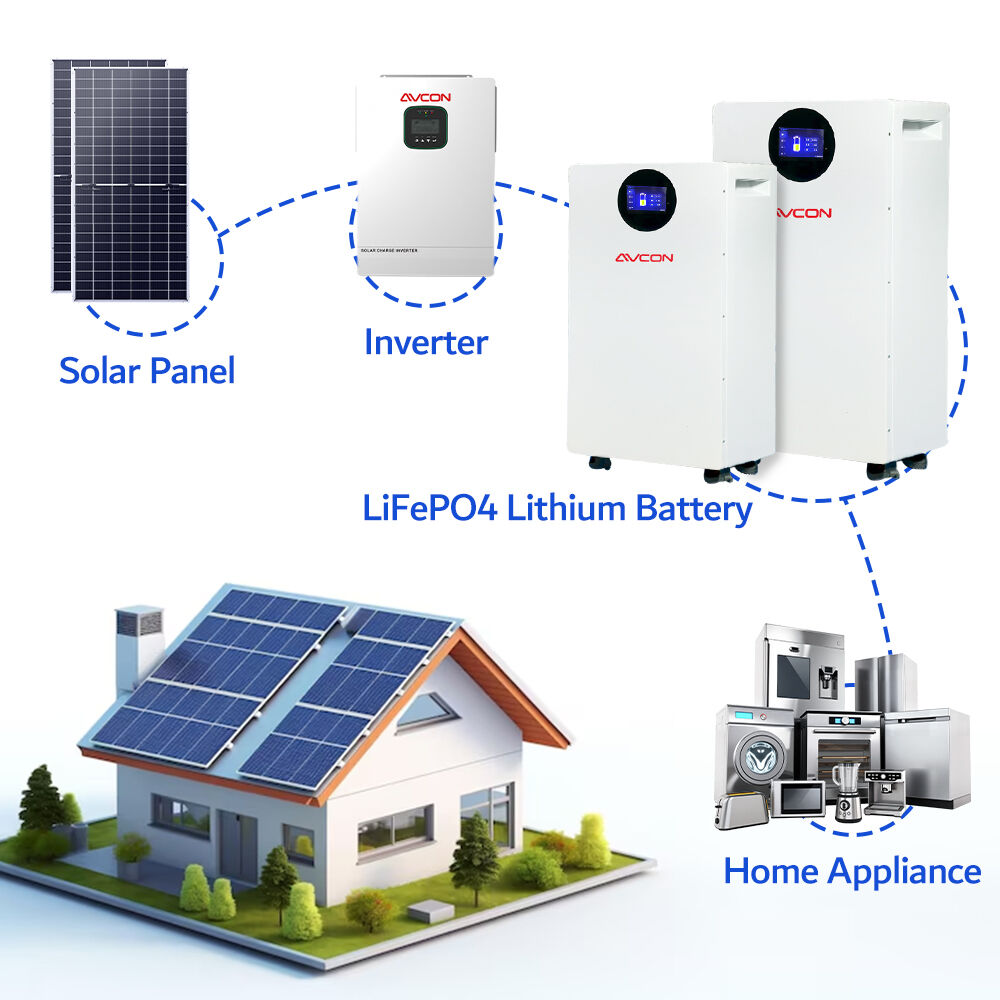

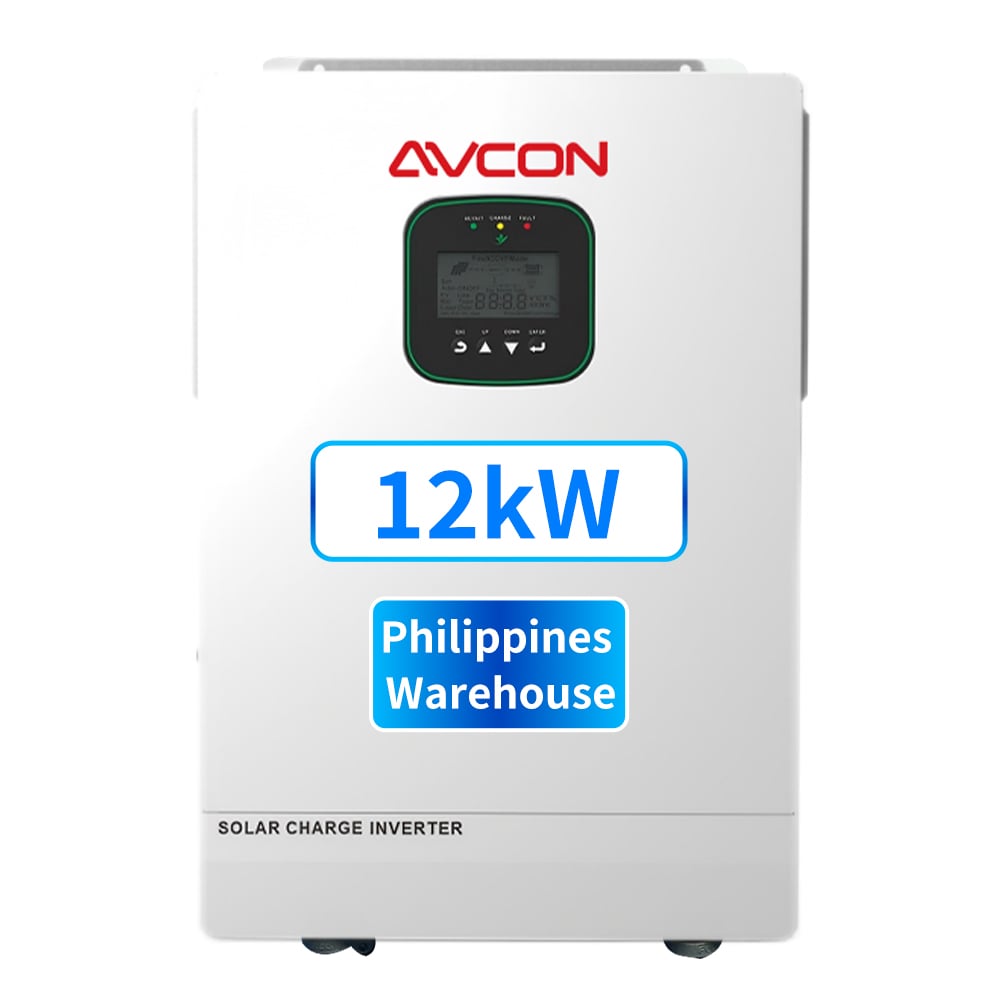

Avcon Solar system inverter 12kw hybrid off grid on grid 1000w home energy storage system with solar panel lithium battery

Core Positioning: High-power inverter for PH’s commercial scenes, large homes & small power stations, meeting high-load continuous power needs.

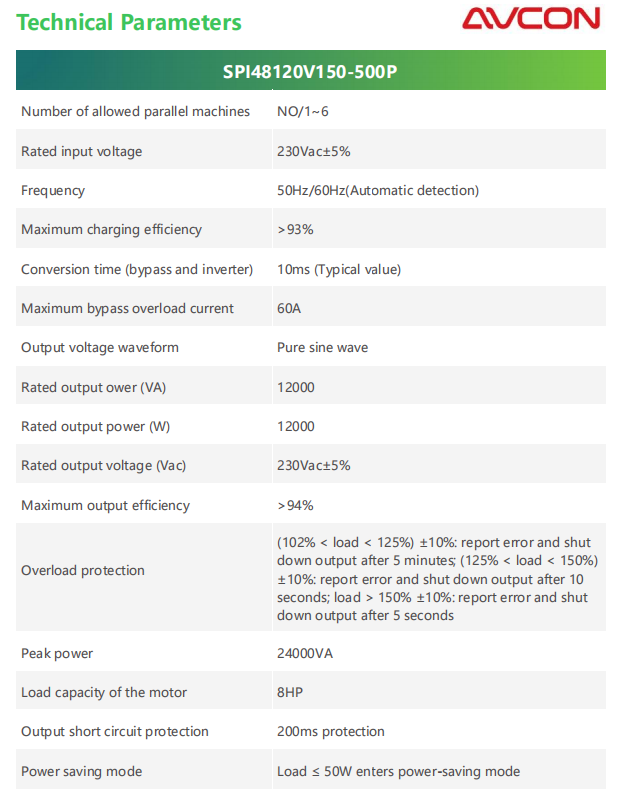

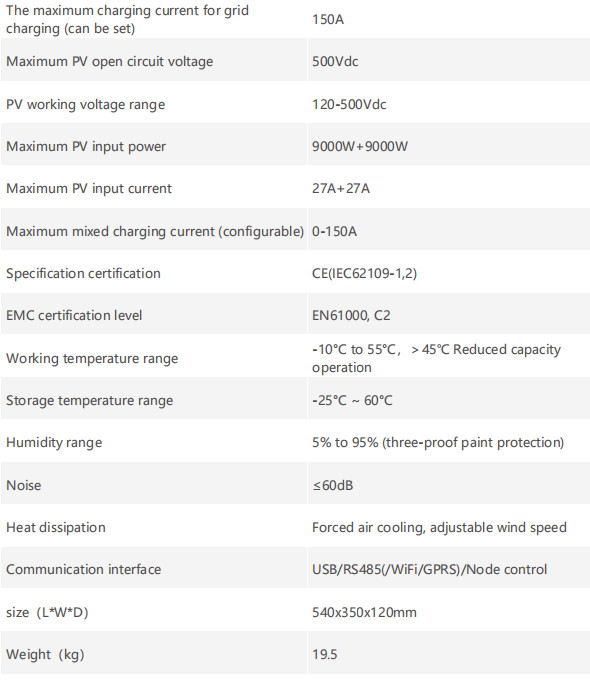

Key Specs

• PV Input: Dual MPPT (120-450V, 27A/channel), max 17kW input, 610W panels compatible (up to 32 units, 8S2P/channel)
• Efficiency: 99.9% MPPT conversion, 66-99kWh daily output
• Output: Pure sine wave, 3-phase power, 110% overload (10s peak), THDi %
• Storage Compatibility: 150A charging current, Li-ion battery compatible, 97.8% charge-discharge efficiency

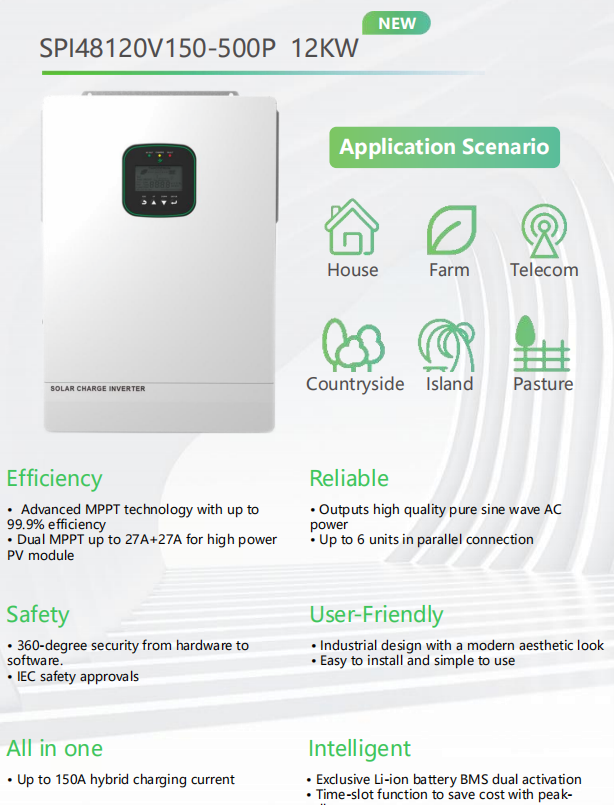

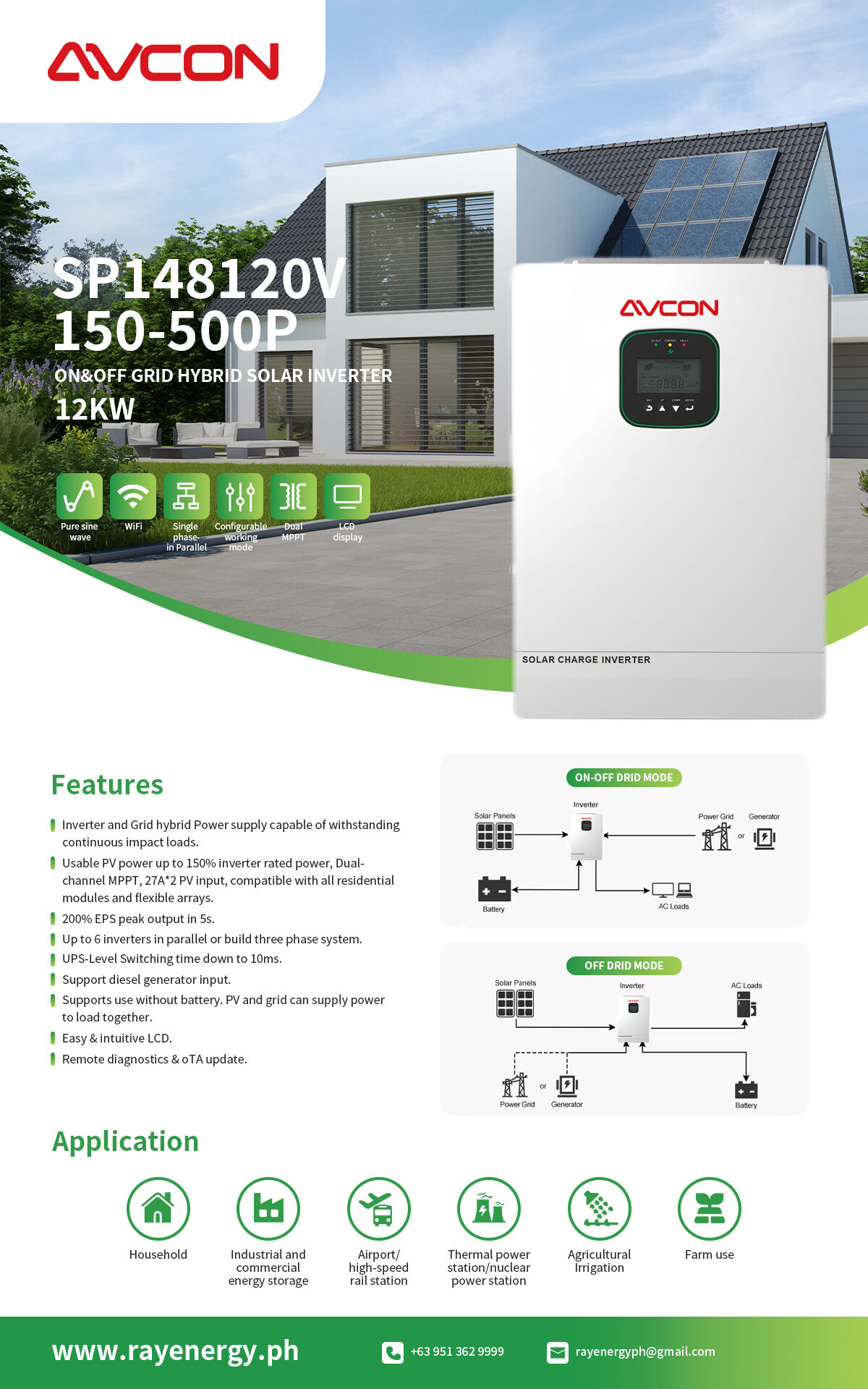

Core Advantages

• Strong Performance: Independent dual MPPT, anti-shading, high-power PV system compatible
• Safe & Compliant: IEC/CE certified, IP65 rating, AFCI & insulation monitoring
• Smart Management: Peak-valley tariff optimization, APP/remote monitoring
• Scalable: Up to 6 units parallel (max 72kW), PH local stock with fast installation
• Commercial Value: 24/7 uninterrupted power, reduces grid dependence & energy costs
