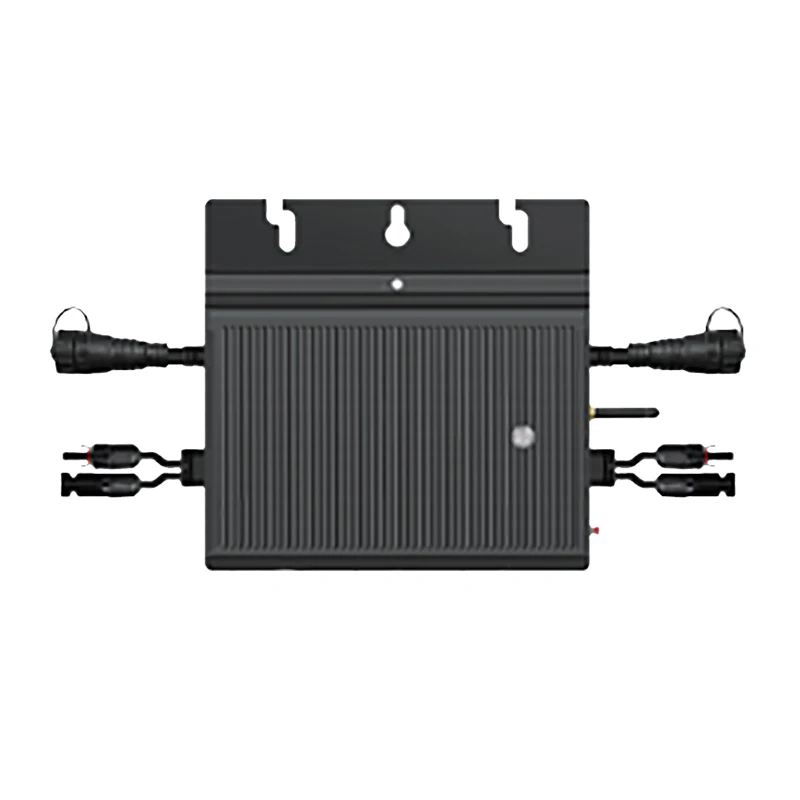

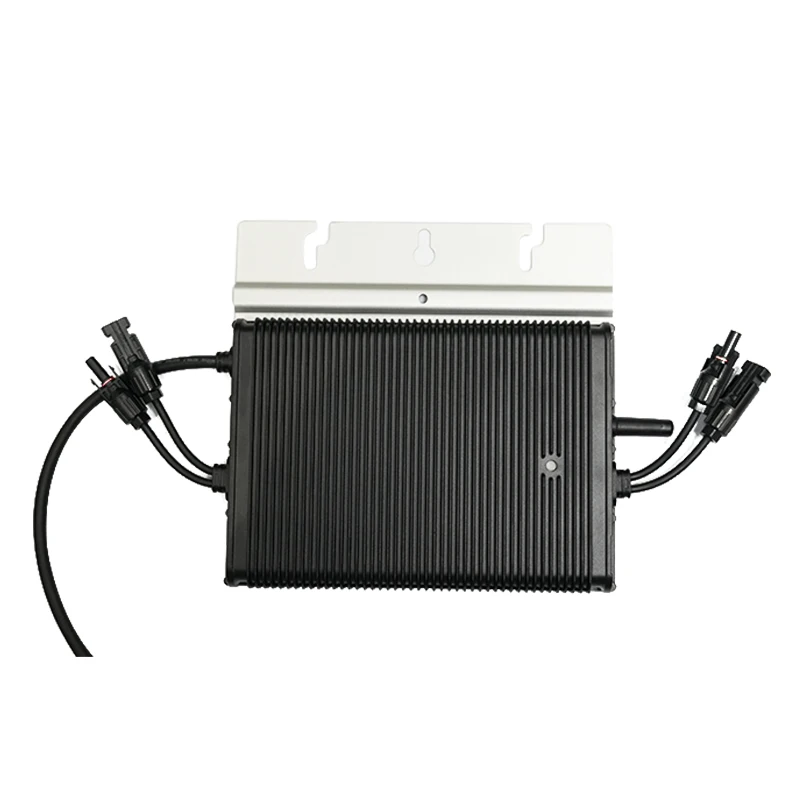

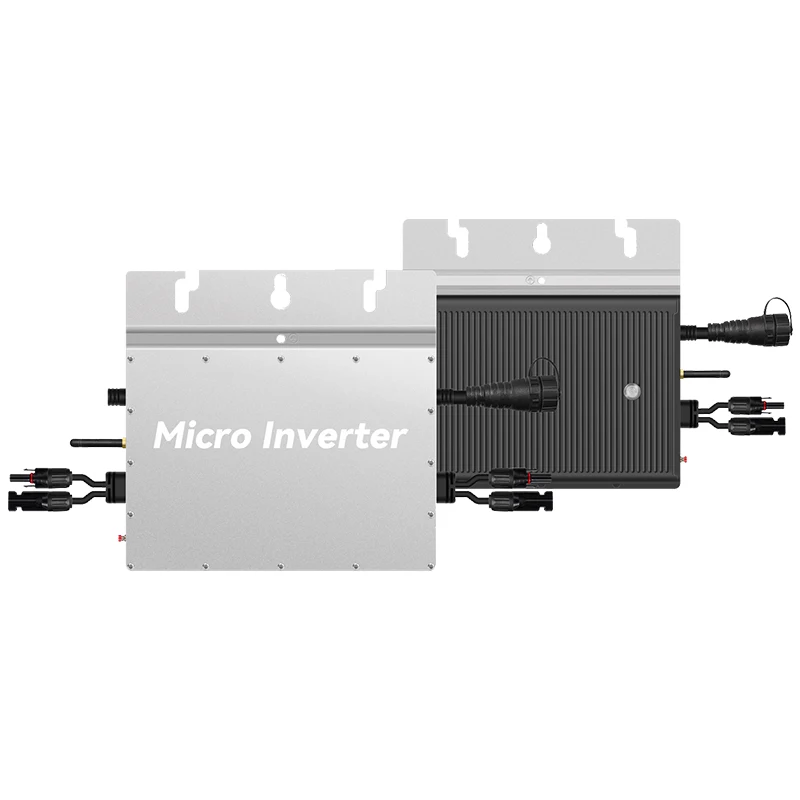

Avcon 1000w Single AC Micro Inverter Solar Panel Kit Portable Solar Energy System for Home Use & Balcony Microinverter
- Overview
- Recommended Products
input（DC） |
|
PV(max) |
500W*2 |
MAX.PV open cuicuit |
60Vdc |
Operating voltage range |
16Vdc-60Vdc |
MPPT voltage range |
16Vdc-60Vdc |
Start up voltage |
22Vdc |
Maximum input current |
2*12.5A |
Maximum input short circuit current |
2*18A |
output(AC) |
|
Maximum output power |
800VA |
Nominal output voltage |
230Vac |
Nominal output frequency |
50Hz |
THD |
＜3% |
Power factor |
>0.99 |
Efficiency |
|
Peak conversion efficiency |
96% |
Night losses |
＜0.3w |
Product Specification |
|
Degree of protection |
IP65/IP67 |
SPEC |

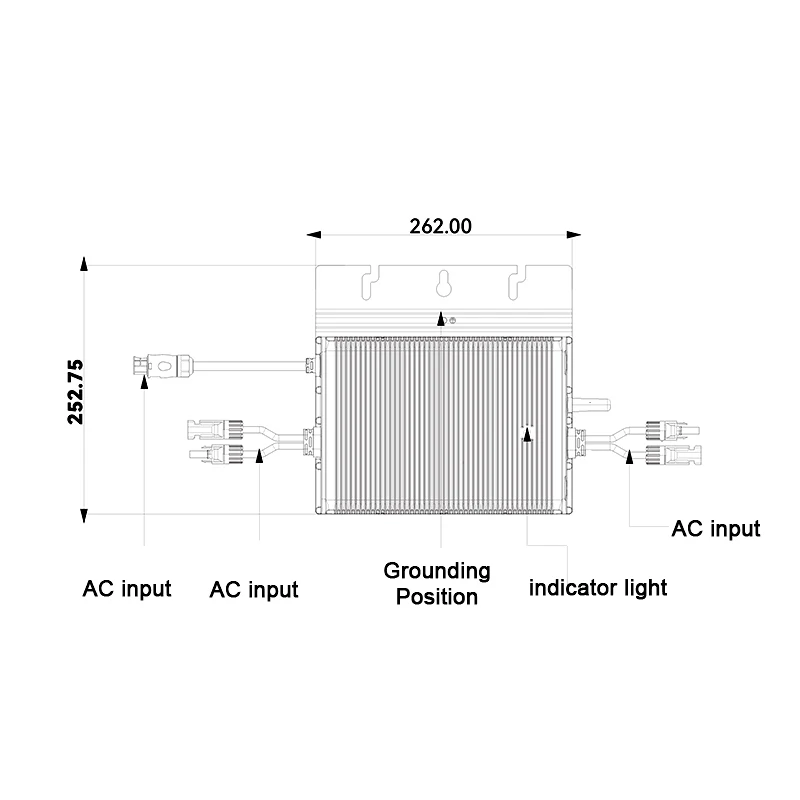

230*200*54mm 1.9kg/2.75kg |
