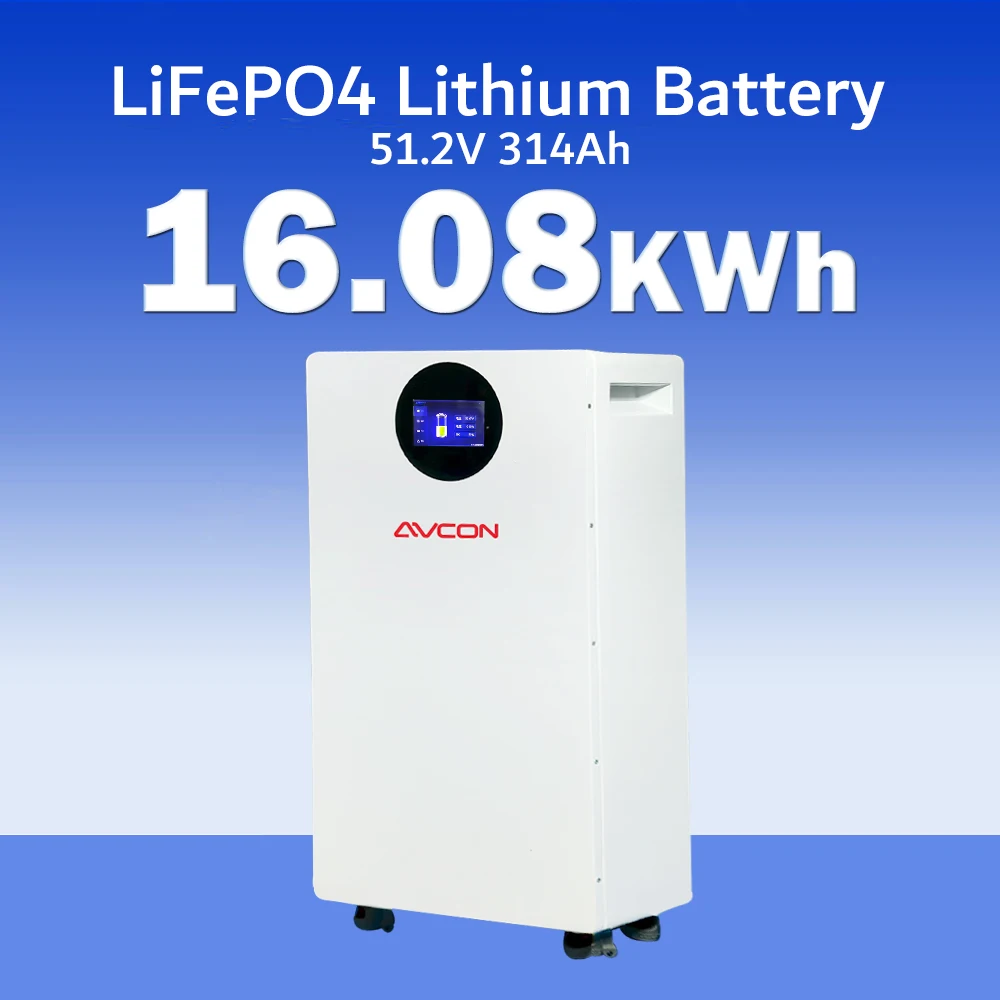

Touchscreen 48v 51.2V 100ah 200ah 5kWh 10Kwh 20kWh for Powerwall Home Solar Storage Lifepo4 Battery Pack Lithium Ion Batteries
- Overview
- Recommended Products
Single module capacity |
16.08kWh |
Rated voltage |
51.2V |
Operating voltage |
40V-58.4V |
Nominal discharge current |
200A |
Nominal charging current |
200A |
Cycle life |
6000 cycles |
Installation method |
Wall-mounted/Rack-mounted |
Protection level |
IP30 |
Communication protocol |
CAN/RS485/ ( Bluetooth WIFI) |

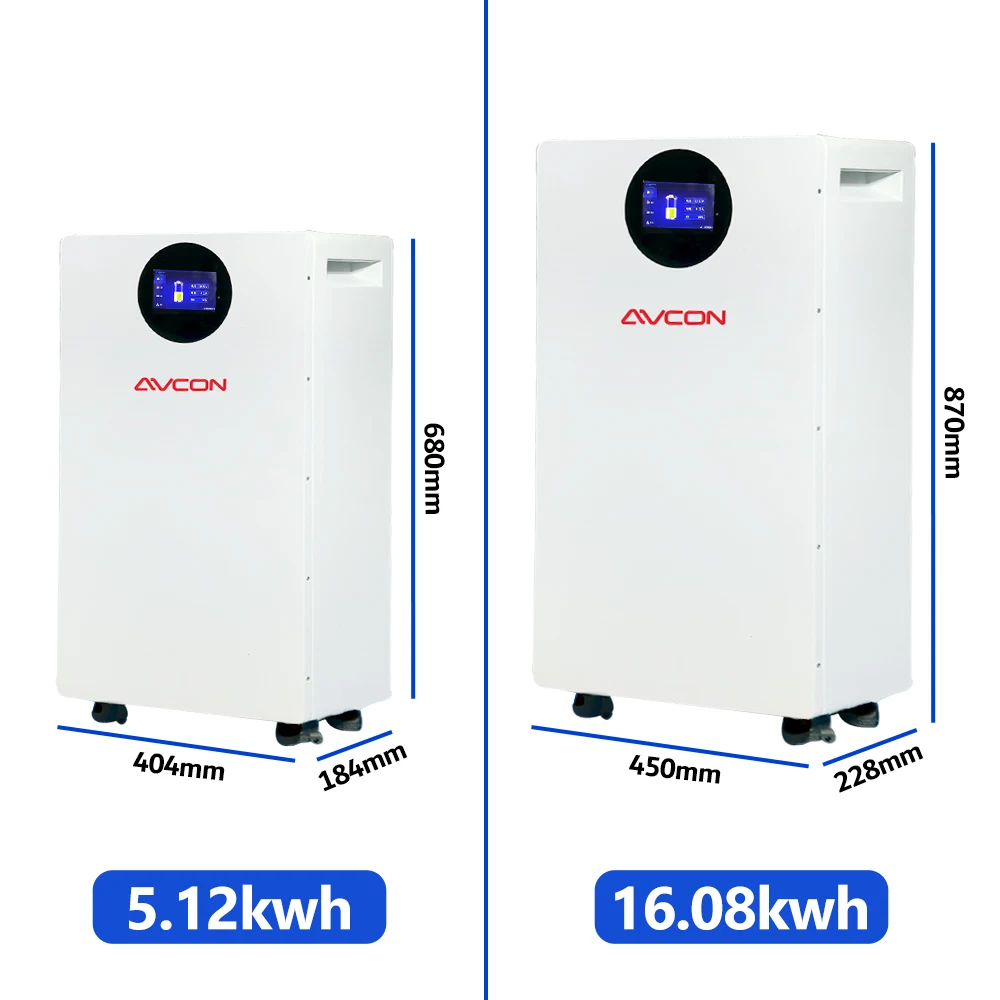

Dimension |
W870*L460*T260mm |
Gross/Net weight(battery part) |
128Kg |
Battery type |
LiFePO4 |
Cooling method |
Spontaneous combustion air cooling |
Charging Temp. Range |
0～ 55℃ |
Discharging Temp. Range |
-20～ 55℃ |
